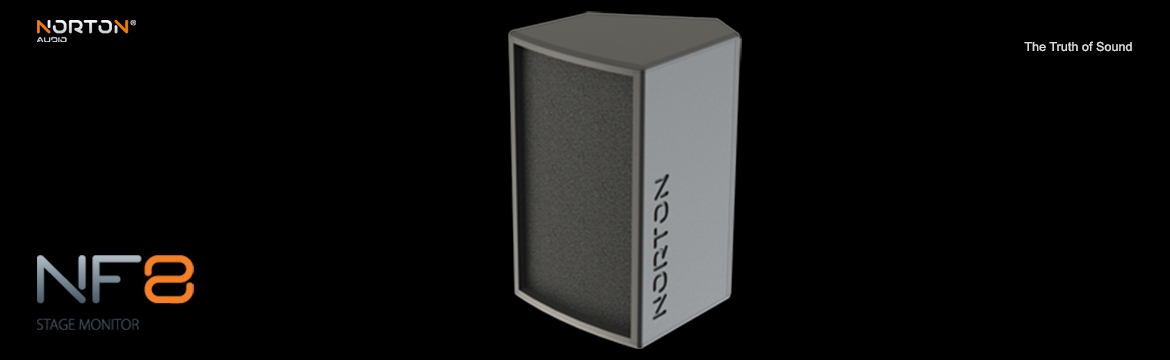

NF8 - Stage monitor
and time, NF8 is a stand-alone plug and play Coaxial two way passive speaker with single Point-Source acoustic radiation in a very compact and low profile footprint.
Containing a 1.5” silk-diaphragm driver coaxially loaded by an 8” low frequency loudspeaker in a bass-reflex tuned enclosure, the NF8 has a high fidelity and high output element that delivers incredible Spl from such a small enclosure.
The high-frequency driver is a remarkable device that incorporates the latest and most innovative technologies, achieving a size so compact that allows it to be assembled at the exact 8” loudspeaker acoustic origin.
The NF8 loudspeaker, due to its small size, is also recommended in all situations where it is mandatory for a visually non-obstructive sound reinforcement system.
The NF8 is the perfect option for where great sound quality and little space occupancy is required.
Usable Bandwidth: 85 Hz – 20 KHz
Nominal Directivity: 90° Conical
SPL: 94 dB
Maximum Continuous SPL: 118 dB
Power Handling: 300 W
COMPONENTS
LF: 1 x 8’’ Weather-resistant 8 ohm
HF: 1 x 1,5’’ HF Silk-diaphragm driver 8 ohm

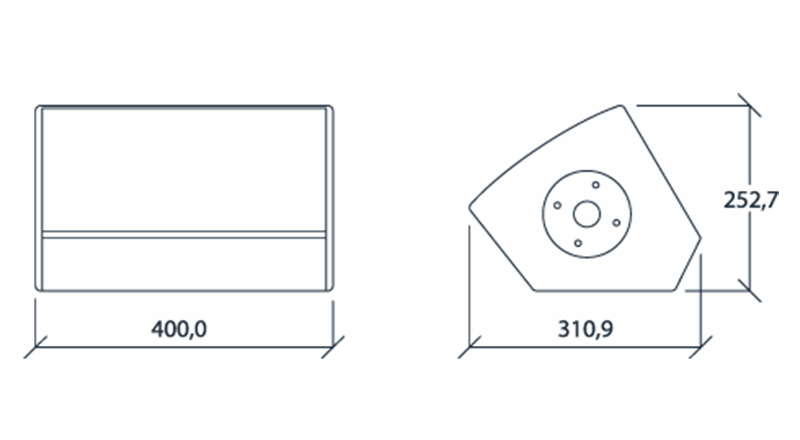

PHYSICAL DATA
Width: 400 mm
Height: 252,7 mm
Depth: 310,9 mm
Weight: 10 Kg
Material: Baltic Birch Plywood
Connections: 2 x 4 Pin Speakon
CONNECTIONS
2 x 4 Pin Speakon
