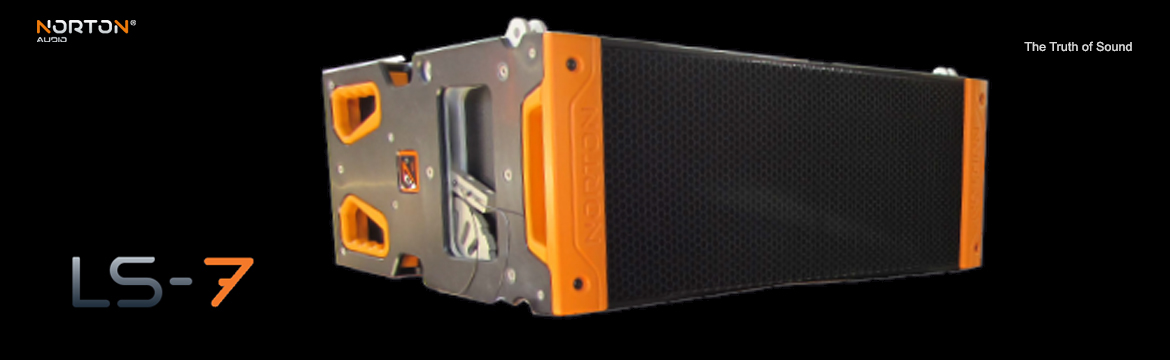

LS7 - Line Source Array
The LS7 element is a very compact and extremely powerful high output module that exceeds all the expectations of how a Line- Source should sound.
It is an 4-way system with a operating frequency bandwidth from 40Hz to 20Khz. This response is lowered down to 28Hz with the addition of the Sb221 Subwoofers.
LS7 features Two 12” drivers in a bandpass tuned enclosure,four 6,5” pack-sealed stand alone medium drivers and two 1.4” compression driver coupled to our patented (Elliptic PlaneProgression isophasic Coupler) (EppicR) waveguide for HF reproduction.
The coplanar transducer configuration generates a symmetric horizontal coverageof 120° without secondary lobes over the entire frequency range. The 4-point rigging system is fully integrated into the LS7 cabinet allowing up to 24 elements to be flown in accordance with manufacturers recommendations.
The LS7 comes pre-wired, complete with rigging hardware, power and control electronics and delivered in road cases.
Usable Bandwidth: (-10dB): 40 Hz - 20 KHz
Nominal Directivity (-6dB): 120° Horizontal - symetric
Maximum Continuous SPL: 130 dB
Maximum Peak SPL: 136 dB
Power Handling: 3450 W RMS
COMPONENTS
LF: 2 x 12” weather-resistance 8 ohm
MF: 4 x 6,5” weather-resistance 8 ohm
HF: 2 x 1,4” compression driver coax.16 ohm
RIGGING
Angles from 0° to 8° in 1° linear step increment

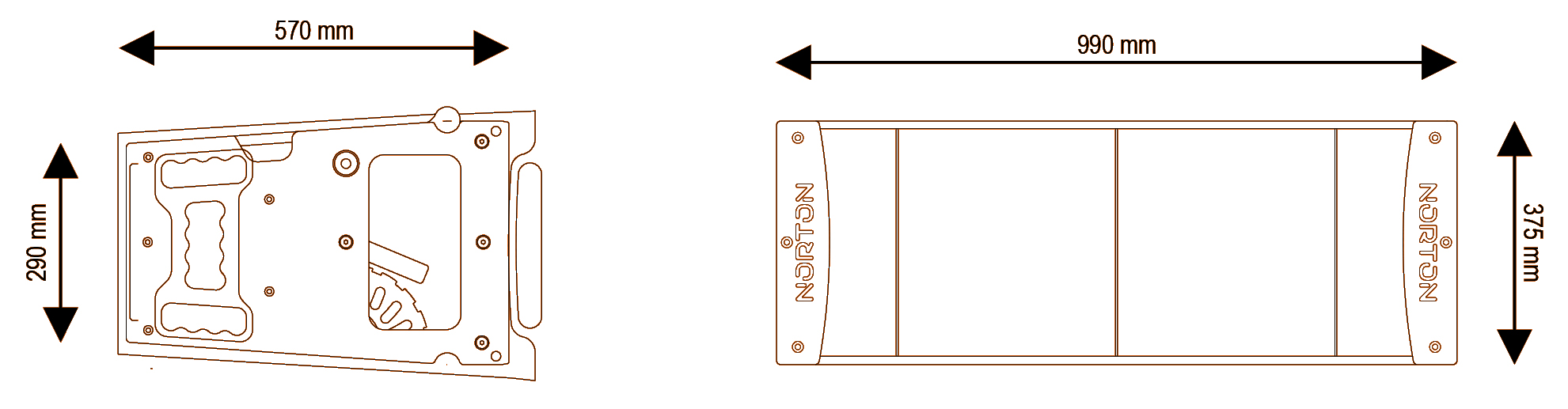

PHYSICAL DATA
Width: 990 mm
Height: 375 mm
Depth: 570 mm
Weight: 70 Kg
Material: Baltic Birch Plywood
Connections: 2 x 8 Pin Speakon
