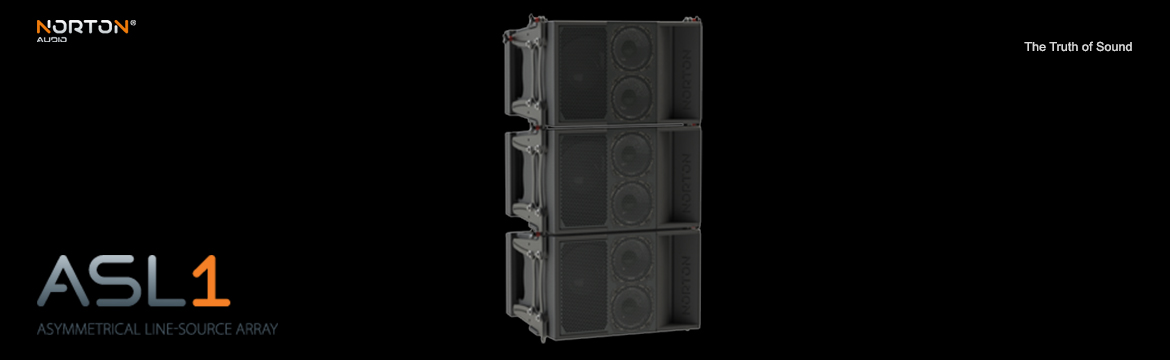

ASL1 - Asymmetrical Line Source Array

The ALS1 is at the peak of the practical limits of a modern state of the art loud speaker.

By simply avoiding any mid-frequency horns, the ALS1 is just the most compact line source element presently available in its category.

The ALS1 ultra-efficient mid frequency drivers, do not have any back or front chamber volumetric frames. They directly profile the bass loudspeaker front band-pass cavity, allowing competent thermal freshening for themselves and an overall ultra-compact and extremely powerful packing that fills all the expectations about how a Line-Source should sound.

ALS1 is an active 3 way system with an operating frequency bandwidth from 60 Hz to 20 KHz. This response is lowered down to 28Hz with the addition of the SB118 or SB221 Subwoofers.

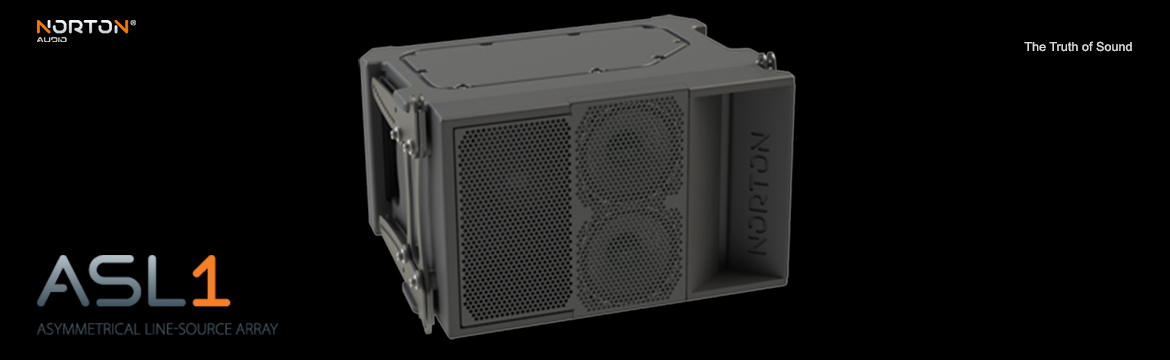

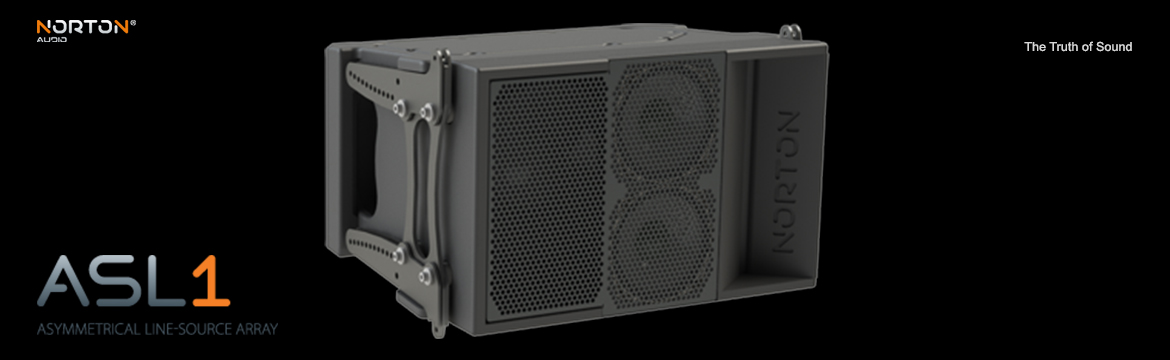

ALS1 features one 12” driver in a band-pass tuned enclosure, two 6.5'' back-sealed standalone medium drivers and two 1” ring-compression drivers coupled to our patented (Elliptic Plane Progression isophasic Coupler) (Eppic®) waveguide for HF reproduction.

The ALS1 comes complete with transport racks, rigging hardware, power and control electronics.

Usable Bandwidth: 60 Hz - 20 kHz

Nominal Directivity: 100° Horizontal - Symmetric

Maximum Continuous SPL: 130 dB

Power Handling: 1200 W


COMPONENTS
LF: 1 x 12
MF: 2 x 6,5
HF: 2 x 1

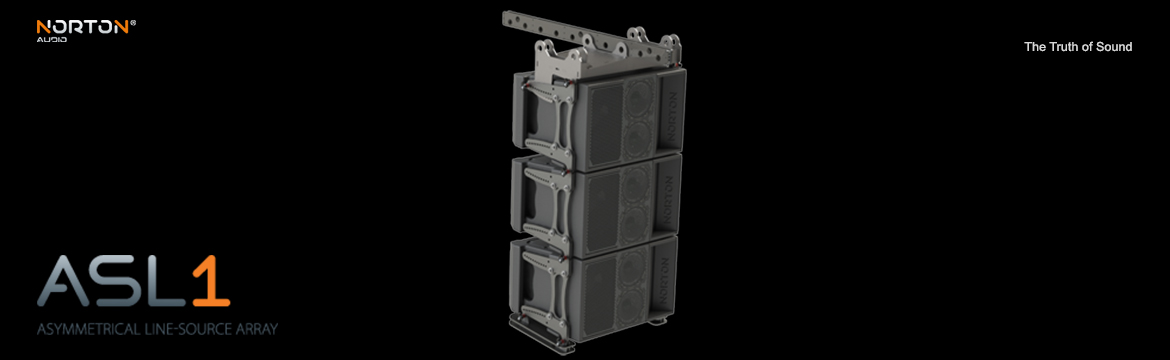

RIGGING
angles from 0° to 10° in 1° linear step increment

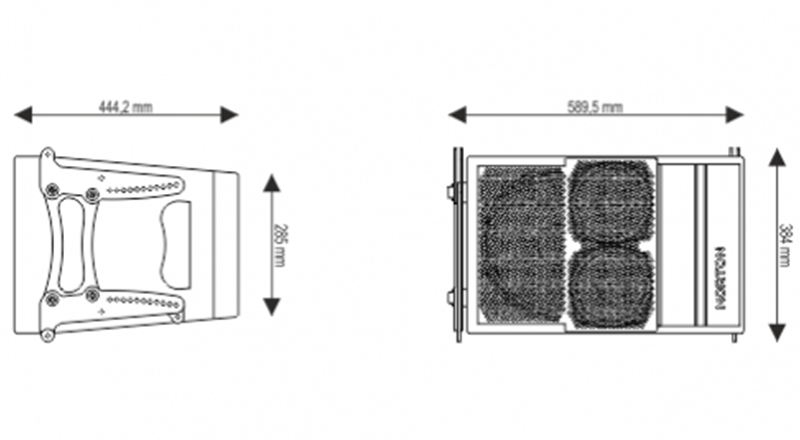

PHYSICAL DATA
Width: 589,5 mm

Height: 384 mm

Depth: 444,2 mm

Weight: 31 Kg

Material: Baltic Birch Plywood

CONNECTIONS::
2 x 8 Pin Speakon
