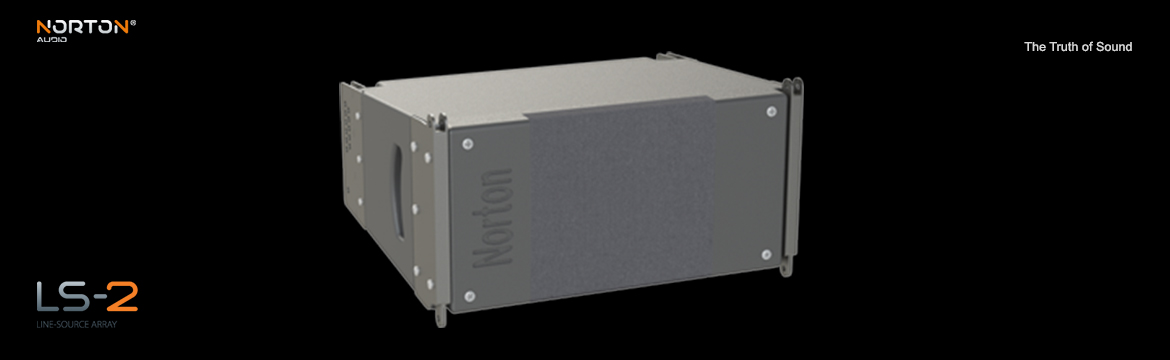

LS2 - Line Source Array
The LS2 element is a very compact and extremely powerful high output speaker that exceeds all the expectations about what a Line-Source should sound.
It is an active 2-way system with a operating frequency bandwidth from 85Hz to 20Khz. This response is lowered down to 28Hz with the addition of the SB118 or SB221 Subwoofers.
LS2 features Two 8” drivers in a bass-reflex tuned enclosure and a 1.5” compression driver coupled to our patented (Elliptic Plane Progression isophasic Coupler) (Eppic®) waveguide for HF reproduction.
The coplanar transducer configuration generates a symmetrical horizontal coverage of 100º without secondary lobes over the entire frequency range. The 4-point rigging system is fully integrated into the LS2 cabinet allowing up to 24 elements to be flown in accordance with manufacture's recommendations.
The LS2 comes pre-wired, complete with rigging hardware, power and control electronics and delivered in road cases.
Usable Bandwidth: 85 Hz – 20 KHz
Nominal Directivity: 100° Horizontal - Symmetric
Maximum Continuous SPL: 128
dBPower Handling: 650W
COMPONENTS
LF: : 2 x 8’’ weather-resistant
2 x 16 ohm
HF: 1 x 1,5’’ HF compression driver
16 ohm
RIGGING
Angles from 0° to 10° in linear step increment
PHYSICAL DATA
Width: 509 mm
Height: 269 mm
Depth: 401 mm
Weight: 25 Kg
Material: Baltic Birch Plywood
Connections: 2 x 4 Pin Speakon
